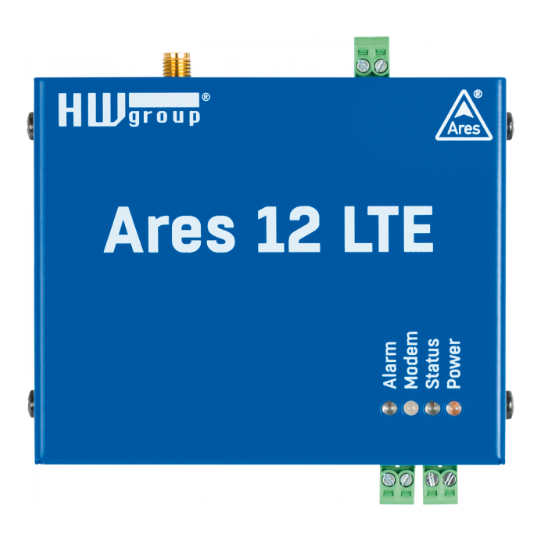

Ares 12 LTE is an industrial unit for remote monitoring and alarming over LTE for locations without LAN access. Includes battery backup. Connect up to 14 external sensors and 2 dry contact detectors.

Ares 12 LTE monitors the readings of connected sensors.

When a value reaches the alarm threshold, the device sends an e-mail or a text message (SMS), or dials specified numbers. Use a SensDesk Technology portal to view measured data in a complex dashboard.

Ares 12 LTE includes an internal battery that provides back-up power for up to 24 hours.

Ares 12 LTE products support FOTA (Firmware Over The Air) for remote firmware updates.

Features:

• 14x 1-Wire UNI/1-Wire Input; 2x Digital Input with S0 pulse counters; Data Logger for more than 250.000 records; Digital Inputs feature 32-bit pulse counters that retain their value even if the power fails
• 5x E-mail; 5x “SMS+Ring”
• Internal battery provides back-up power for up to 24 hours.
• Use the USB interface to configure the device from a PC with no need to install any additional software. Remote configuration also possible via the “AresConf” tab in the SensDesk portal.
• Remote firmware upload (FOTA) capability makes Ares devices ideal for large-scale deployments.
• Connected via LTE and GSM/GPRS. List of APN available worldwide.
• A sensor value out of a set safe range as well as a DI state change sends an alert by e-mail or “SMS+Ring”, or activates a relay (via connected accessory “Relay Output 1-Wire UNI”).
• Data can be sent in e-mail attachments or downloaded via USB.
• Compatible with a range of third party SW (SCADA etc.). Examples for programmers on using the product are available in the HWg-SDK (Borland C++, MS Visual, VB, C#, PHP, JAVA and more).

Applications and usage:

• LTE connection
• GPRS monitoring of machines and their environment
• ATMs – environment monitoring without tampering with the connection
• Art exhibits and depositories
• Storages of food or materials
• Cooling systems and coolers
